High Speed Rigid Frame Cable and Wire Strander/ Rigid Stranding Machine for Electrical Cable Production Line

Name: High Speed Rigid Frame Cable and Wire Strander Rigid Stranding Machine for Electrical Cable Production Line
Brand: Hooha
Price: 80000 USD

Wholesale High Speed Rigid Frame Cable and Wire Strander/ Rigid Stranding Machine for Electrical Cable Production Line from china suppliers

Brand Name : Hooha

Model Number : HH-500-12+18+24

Certification : ISO, CE, SGS

Place of Origin : Guangdong, China

MOQ : 1unit

Price : USD80000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1unit30days

Delivery Time : 60days

Packaging Details : film/wooden package

Usage : Stranding

Single wire Diameter : 1.5 - 5mm

Max stranded Diameter : 45mm

Max cage rotate speed : 12B:175RPM 18B:160RPM 24B:145RPM

Capstan wheel diameter : 2000 mm

Central pay-off bobbin : 1600mm

Pay-off bobbin in cage : 630 mm

Contact Now

Product Description

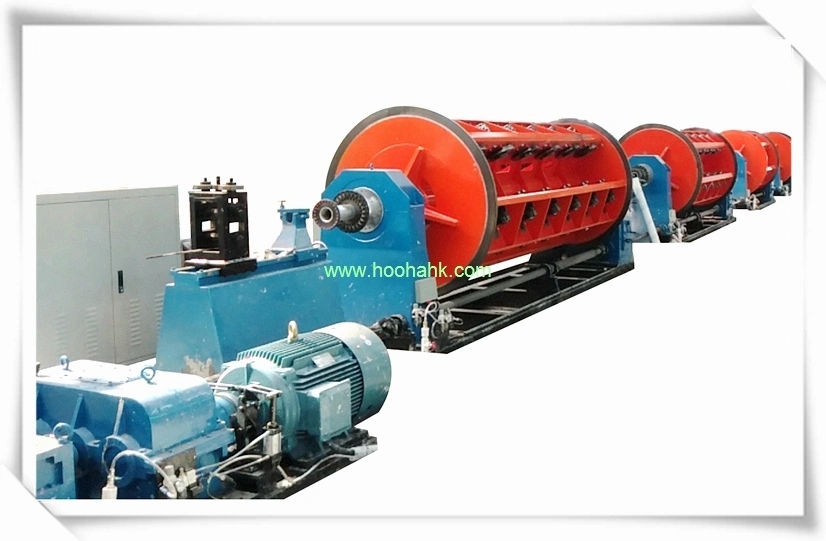

High Speed Rigid Frame Cable and Wire Strander/ Rigid Stranding Machine for Electrical Cable Production Line

Application:

It is used for the wring and compacting of fan-shaped conductor, wringing and drawing of circular conductor, and pre-wringing and wringing of conductor core. Mainly used for copper and aluminum conductor cables twisted wire system fan pressed,pressed and drawn round conductor segment conductor strands twisted pre-pressed.

Trait:

Design the top hole of special machine processing frame to ensure the concentric degree of two holes so as to avoid the
 concentric problem affecting the tension;
Optimized clamping structure, more stable pneumatic tension, more reliable clamping bearing;
Newly added upper disc mechanism at the lower hydraulic side enriches the upper disc varieties;
The newly added electric clamping mechanism enriches the clamping form.

Item	Unit	HH-500
Stranding-single wire Dia.	mm	Copper	Ø1.5~4.5
		Aluminum	Ø1.8~5.0
Max. section area	mm2	Copper	500
		Aluminum	630
Cage rotating speed	r/min	63~148
Hauling line speed	m/min	6.87 ~ 52.2
Stranding pitch	mm	47 ~ 825
Capstan Dia.	mm	Ø 2000*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND500
Takeup bobbin size	mm	PN 2500
Machine center height	mm	1000
Main motor power	KW	55

Item	Unit	HH-630
Stranding-single wire Dia.	mm	Copper	Ø 1.5~4.5
Stranding-single wire Dia.	mm	Aluminum	Ø 1.8~5.0
Max. section area	mm2	Copper	300
Max. section area	mm2	Aluminum	400
Cage rotating speed	r/min	6 Bobbins	75~174
		12 Bobbins	67~156
		18 Bobbins	57~133
		24 Bobbins	48~112
		30 Bobbins	43~100
Hauling line speed	m/min	6~45.6
Stranding pitch	mm	34~1041
Capstan Dia.	mm	Ø 2500*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND630
Takeup bobbin size	mm	PN2000
Machine center height	mm	1000
Main motor power	KW	45

The wire samples

The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.
