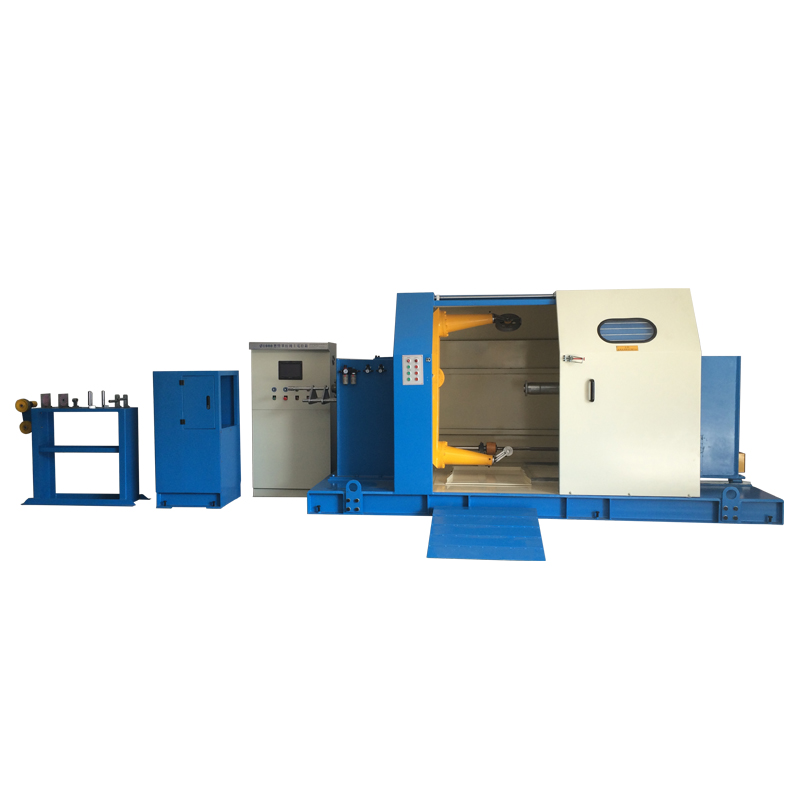

USB Cable 3/4 core wire stranding machine Cantilever single type twisting machine

Name: USB Cable 34 core wire stranding machine Cantilever single type twisting machine
Brand: HOOHA
Price: 1 USD

Wholesale USB Cable 3/4 core wire stranding machine Cantilever single type twisting machine from china suppliers

Brand Name : HOOHA

Model Number : 630/800/1000

Certification : CE ISO

Place of Origin : Guangdong

MOQ : 1 set

Price : negotiable

Payment Terms : T/T,L/C

Supply Ability : 20 sets/month

Delivery Time : 30 working days

Packaging Details : plastic or wooden packing

Electricity brand : German brand

Technician : install,debug,training

Technical support : yes

Exported experience : 12 years

Certificate : ISO,CE

Color : Gray/Blue

Inverter : YASKAWA

Single wire OD(mm) : Φ0.5-Φ3.0

Pay-off bobbin size(mm) : Φ500

Contact Now

USB Cable 3/4 core wire stranding machine Cantilever single type twisting machine

MORE INFORMATION

Youtube: https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYowhttps://www.youtube.com/channel/UCKBDFWwJ8fuEs6P6T6CNF6g

Products Description

Application:

The machine mainly apply to multiple cabling of data cable , HDMI wire cable , power cable ,naked copper wire (fine wire ), shielding layer cable , control cable , etc .

630 Cantilever single twisting main machine	1.Single inlet wire diameter:0.6mm – 4mm
	2.Twisted diameter:Max 15mm
	3.Rotation speed:Max 1000 rpm
	4.Power:10 HP motor+10 HP inverter
	5.Pitch range:20mm---200mm, Step-less to set twist pitch
	6.Brake:Take-up adopt famous brand Hydraulic Pneumatic type brake
	7.Traverse:Cantilever single stranded wire charge in accordance with the coil own speed and reciprocating movement to realize traversing
	8.Wire bobbin loading:Up and down adopt motorized hydraulic lifting
	9.Inlet wire:Adopt wire branching plate, which the wire can be fixed position
	10.Drag:Synchronous belt drive
	11.Tension:Adopt automatic tension control , automatic track to adjust the take-up tension to make the whole take-up tension uniform
	12.Meter counting:Meter counting wheel + sensor. machine auto stop while reaching the setting length
Wrapping Machine	1.Belt turntable:Plate diameter is 250 mm; Width is 10mm ~ 30mm; Bore diameter is 50 mm
	2.Wrapping speed :Max 2500 RPM
	3.Material:Cotton paper and aluminum-foil, Mylar etc
	4.Wrapping power: Motor + inverter control
	5. Wrapping tension: Adopt magnetic powder clutch
	6.Wrapping speed :With main motor single /integration motion control,can be S or Z .
PLC Siemens electric control box	1.PLC:Human-machine interface , programmable automatic control
	2.Performance:Automatically track and display
	3.Brand:Switches , buttons, lights made from famous brand. Rely made from Japanese Omron brand

The Wire Samples

Details Images

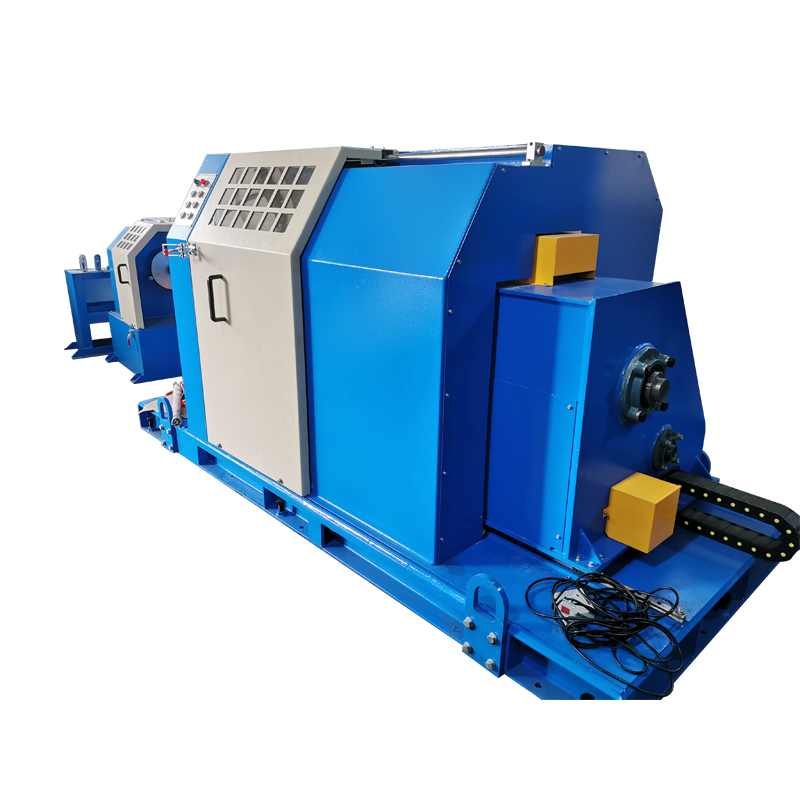

Mainframe

The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.

Pay-off

For prepared material that provide for the mainframe to bunching into 1 . It can be divided into 2 different type of pay-off stand :
